BRAVOLL® TIT 60/5-20

DESCRIPTION

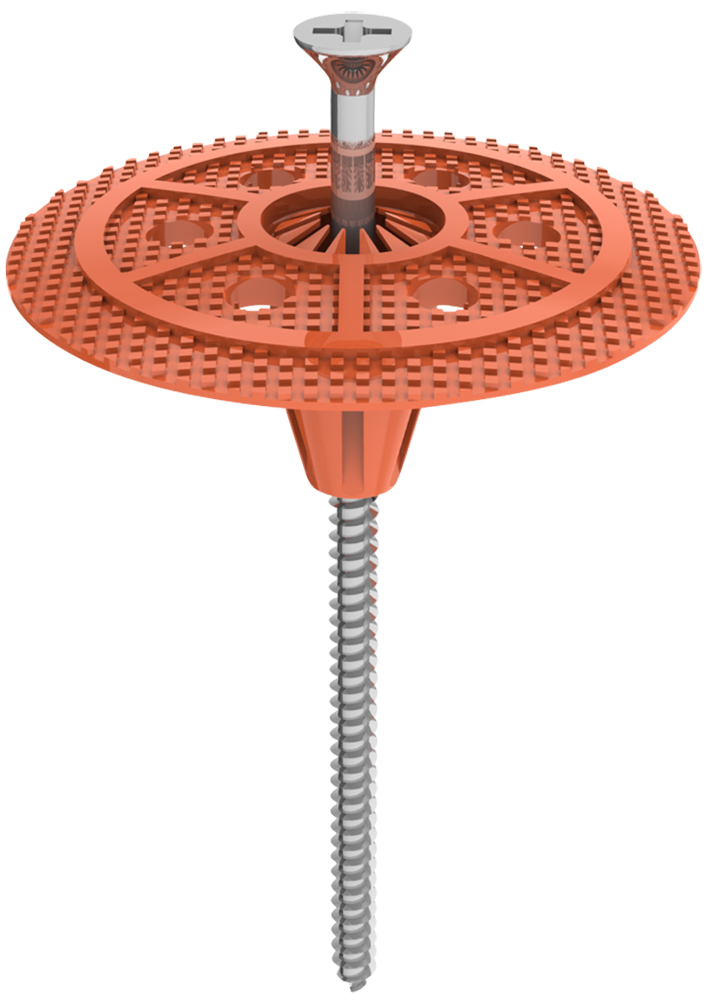

Plastic anchor for the mechanical fixing of rigid expanded polystyrene (EPS) and mineral wool (MW) boards for external wall insulation systems (ETICS) into wooden and steel substrates.

Insulation washer with recess for reduced thermal transmission.

The product can be supplied as a complete anchor together with Torx head screws for wood and thin gauge steel sheets (EURO TS15 with hardened tip) or for steel (EURO VR15 with self-drilling head).

Both types of screws are treated against corrosion (15 Kesternich cycles).

SUITABLE FOR

Base materials: wood and metal sheets (max. 2 x 1.25 mm)

FEATURES

  • EURO VR15 and TS15 screws can be installed into most base materials without any pre-drilling
  • Quick and easy setting
  • Limited thermal transmission
  • Special plate surface for optimum render adhesion

TECHNICAL DATA

  • Approval from TZUS: 090-006720
  • Base materials for EURO TS15 screws: Wood, chipboard panels, thin gauge steel sheets (up to 0.88mm)
  • Base materials for EURO VR15 screws: Wood, chipboard panels, thin gauge steel sheets (up to 2 x 1.25mm)
  • Screw diameter: 4.8 mm
  • Washer diameter: 60 mm
  • Minimum embedment: 20-40 mm

LENGTH RANGE

BRAVOLL® Product type

Code

Washer diameter dp mm

Pcs per carton

Pcs per pallet

TIT 60/5-20

11626

60

400

33,600

ANCHOR LENGTH CALCULATION

TS15 Code Screw length (mm) Anchor length La (mm)  Embedment Hnom (mm)  Ins. thickness hd (mm)  Pcs per box

4.8x60

48060 60 70 20-40 30-50 200

4.8x80

48080 80 90 20-40 50-70 200

4.8x100

48100 100 110 20-40 70-90 200

4.8x120

48120 120 130 20-40 90-110 200

4.8x140

48140 140 150 20-40 110-130 200

4.8x160

48160 160 170 20-40 130-150 500

4.8x180

48180 180 190 20-40 150-170 500

4.8x200

48200 200 210 20-40 170-190 500



VR15

Code Screw length (mm) Anchor La (mm)  EmbedmentHnom (mm)  Ins. thickness hd (mm)  Pcs per box

4.8x60

49060 60 70 20-40 30-50 1000

4.8x80

49080 80 90 20-40 50-70 1000

4.8x100

49100 100 110 20-40 70-90 500

4.8x120

49120 120 130 20-40 90-110 500

4.8x140

49140 140 150 20-40 110-130 500
